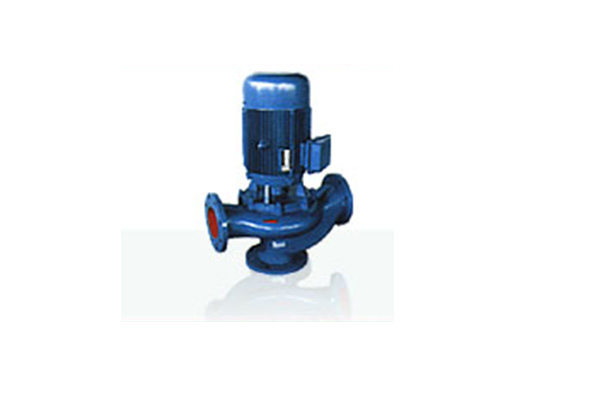

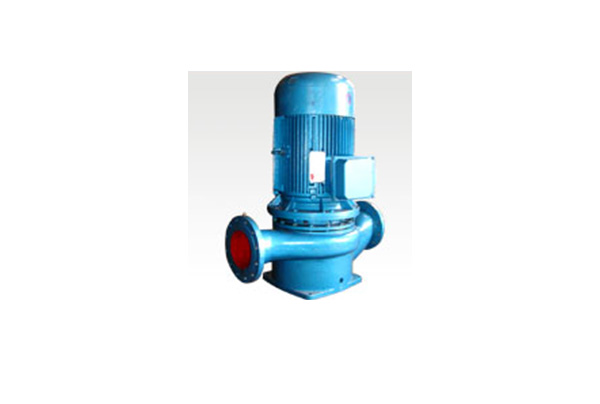

ISG, IHG vertical pipeline pump

Overview of IHG type vertical pipeline pump:

IHG series single suction vertical centrifugal pump IS designed and manufactured in accordance with ISO2858, with the performance parameters of IS type centrifugal pump and good hydraulic model.IRG, IHG, YG and other products suitable for hot water, corrosive media and petrochemical products are derived according to different temperatures and media.

If the motor power is above 30kw, it is designed to be of direct connection type and removable type. Removable type means that the pump rotor can be removed under the condition that the motor and pump body do not move, which greatly reduces the maintenance cost and labor intensity.

IHG type vertical pipeline pump parameters:

Flow rate Q 1 ~ 1200 m3 / s

Lift H 8 ~ 150 m

IHG type vertical pipeline pump

IHG50 160 (I) A (B)

IHG - pump type

50-diameter of pump inlet and outlet (mm)

Nominal outer diameter of impeller (mm)

I- traffic classification

A(B)- the impeller is cut

IHG vertical pipeline pump structure:

IHG type pipeline pump is of vertical structure, with the same inlet and outlet diameters and the same center line. It can be installed in the pipeline like a valve, with compact appearance and small occupation area.

Complete range of IHG type vertical pipeline pump:

Complete set of supply pump, motor, base plate, coupling, inlet and outlet spool, etc.
