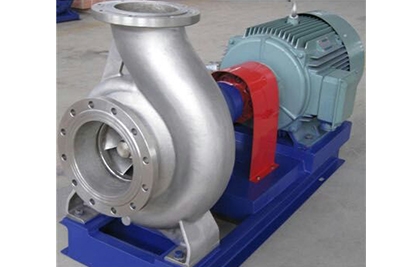

HCZ chemical centrifugal pump

I. product overview

HCZ series standard chemical pump is horizontal, single - stage, single - suction centrifugal pump.

The performance range of HCZ series standard chemical pump includes the performance of IH series standard chemical pump.

Scope of application

Transport of low or high temperature liquids;Neutral or corrosive liquids;Clean or contain solid particles.Apply to:

Chemical and petrochemical industries

Paper mill and pulp industry

Coating industry (degreasing, phosphating, electrophoresis, etc.)

Performance range

Traffic: 2000 m/s

Head: 160 m

Speed: 1450 ~ 2900r/min

Flow rate (Q) up to 2000 m3 / h

The head (H) can reach 160 meters

Working pressure (P) 2.5mpa

Working temperature (T) - 80 ℃ ~ + 300 ℃

Low cavitation, high efficiency, and maintain these characteristics even under load.
