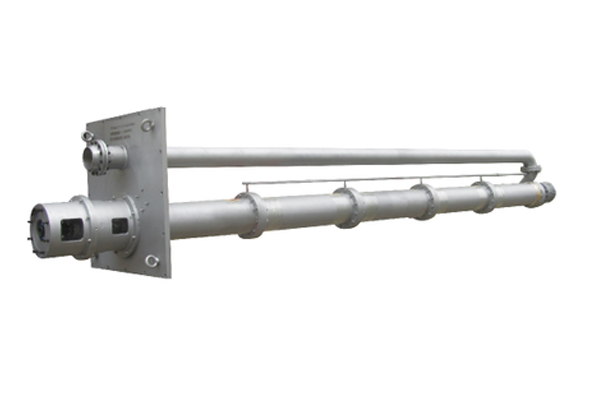

Long shaft down pump

I. description of FYL long axial liquid pump

FYL long shaft liquid pump is a vertical centrifugal pump, suitable for chemical, petroleum, electric power, metallurgy, papermaking and other industries, can be used for corrosive liquid, liquid containing a small number of solid particles.I plant is selected from the mainland of the current relatively high level of hydraulic model design.

Ii. Features of FYL long-axis liquid pump

1. From the motor to the pump end, the pump is counterclockwise.

2, the pump USES a long shaft structure, the number of hydraulic insertion can reach 10 meters, shaft connection structure, easy to remove.

3. When the pump is started, the impeller is immersed in the medium, so it is easy to start and there is no exhaust problem.

4, the rotor parts can be axial adjustment, and the use of multi-point support, smooth pump operation, can use long suction pipe, increase the number of times of hydraulic insertion, using their own suction, the length of the rotor shortened, economical and reasonable.

5, sliding bearing can choose external cooling lubrication or self-cooling lubrication.

6. The outlet flange is a semi-movable flange for easy connection.

7, with low speed motor, low noise, smooth operation, long service time.
